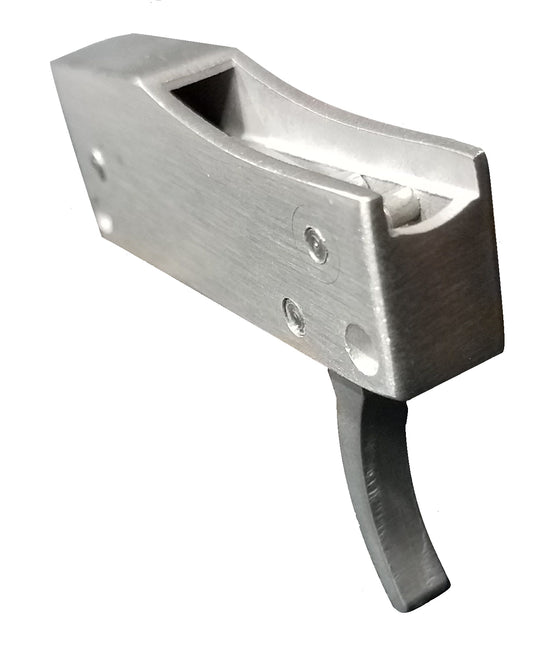

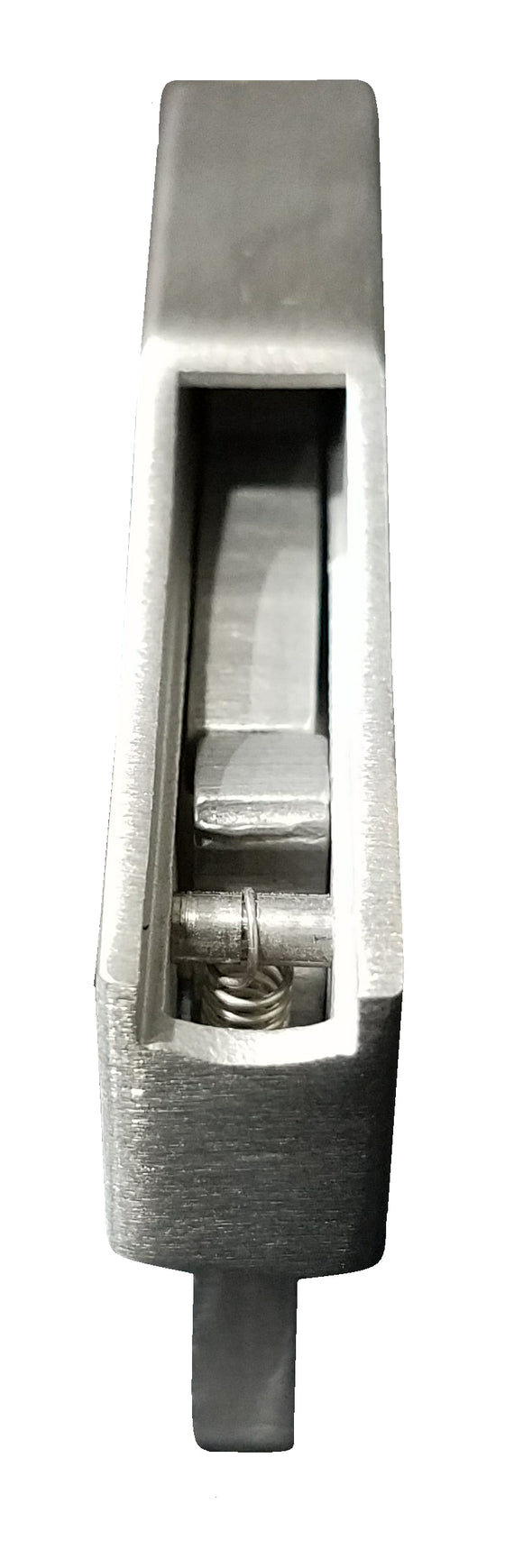

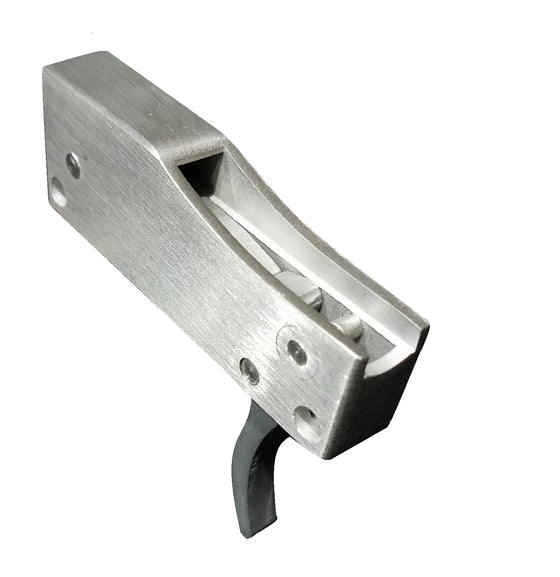

KOAH Brute Series Reverse Mechanism

Speargun Parts - Wood by KOAH Spearfishing Co.
  • KOAH Brute Series Reverse Mechanism is regarded as the strongest and smoothest reverse trigger mechanism in the USA.
  • With a bottom side mounted line release the line wrap of mono is never in your line of site.
  • Has a 3.5-4lb trigger pull and a 0.1in thick box wall to give it unparalleled strength.
  • Precision cast, fully boxed stainless frame, with a brushed finish.
  • Quarter inch thick internals that have been shaped down to the fraction of a degree to allow for effortless loading and flawless release.

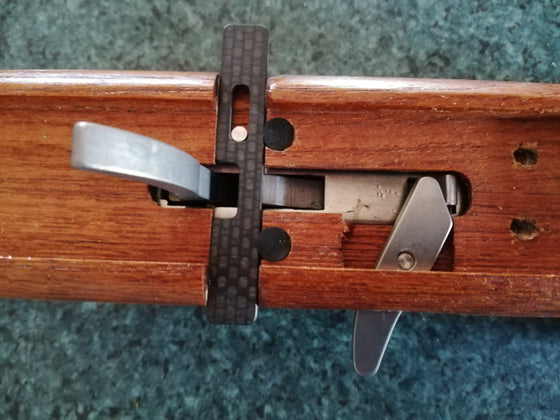

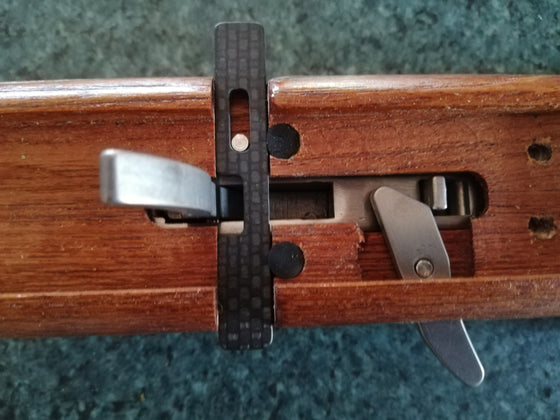

  • Makes a beautiful seamless flush mount with the top of the speargun.
  • Ideally suits rear handle speargun setups to maximise band stretch length.

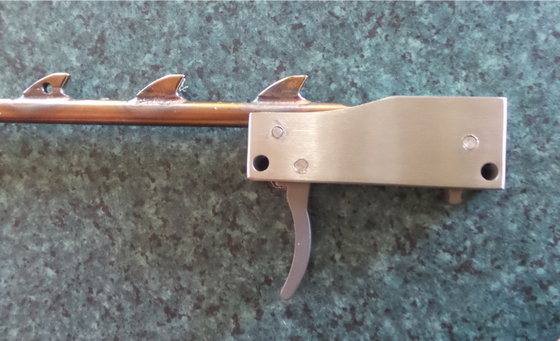

  • Uniquely accepts both US squarecut and oval euro spear shafts.
  • Takes up to 8.5mm spear shafts standard or 10mm with shoulders shaved.
  • Comes with 3/16 mounting pins and line release.
  • Boxed frame measures 70mm long x 25mm high x 12mm width
  • Height from top of mech to bottom of trigger = 57mm

KOAH Brute Series Reverse Mechanism

$125.00
Speargun Parts - Wood by KOAH Spearfishing Co.
KOAH Brute Series Reverse Mechanism KOAH Brute Series Reverse Mechanism KOAH Brute Series Reverse Mechanism KOAH Brute Series Reverse Mechanism KOAH Brute Series Reverse Mechanism KOAH Brute Series Reverse Mechanism
KOAH Brute Series Reverse Mechanism KOAH Brute Series Reverse Mechanism KOAH Brute Series Reverse Mechanism KOAH Brute Series Reverse Mechanism KOAH Brute Series Reverse Mechanism KOAH Brute Series Reverse Mechanism

KOAH Brute Series Reverse Mechanism

$125.00
Speargun Parts - Wood by KOAH Spearfishing Co.
$125.00
  • KOAH Brute Series Reverse Mechanism is regarded as the strongest and smoothest reverse trigger mechanism in the USA.
  • With a bottom side mounted line release the line wrap of mono is never in your line of site.
  • Has a 3.5-4lb trigger pull and a 0.1in thick box wall to give it unparalleled strength.
  • Precision cast, fully boxed stainless frame, with a brushed finish.
  • Quarter inch thick internals that have been shaped down to the fraction of a degree to allow for effortless loading and flawless release.
  • Makes a beautiful seamless flush mount with the top of the speargun.
  • Ideally suits rear handle speargun setups to maximise band stretch length.
  • Uniquely accepts both US squarecut and oval euro spear shafts.
  • Takes up to 8.5mm spear shafts standard or 10mm with shoulders shaved.
  • Comes with 3/16 mounting pins and line release.
  • Boxed frame measures 70mm long x 25mm high x 12mm width
  • Height from top of mech to bottom of trigger = 57mm
