Meandros B28 Camo Green Speargun - NAKED M4 Closed

Spearguns by Meandros

Meandros brings you a range of the most innovative ideas, improvements and solutions to tube speargun design in history!

The Meandros B28 Camo Green Speargun - NAKED is an exceptionally high quality aluminium railed speargun packed with unique features. Recently launched, this brings the latest technology in spearfishing to the Australian user.

Identified by its bright yellow handle and green camouflage round 28mm to suit the greatest majority of hunting environments.

This speargun is equally useable by both beginners and advanced spearos. It is also suggested for the experienced and highly demanding spearo that hunts in caves or reefs.

This style of speargun will be of particular interest to those seeking utmost accuracy and power in the simplest form of speargun available. It is a perfect speargun for competition spearos.

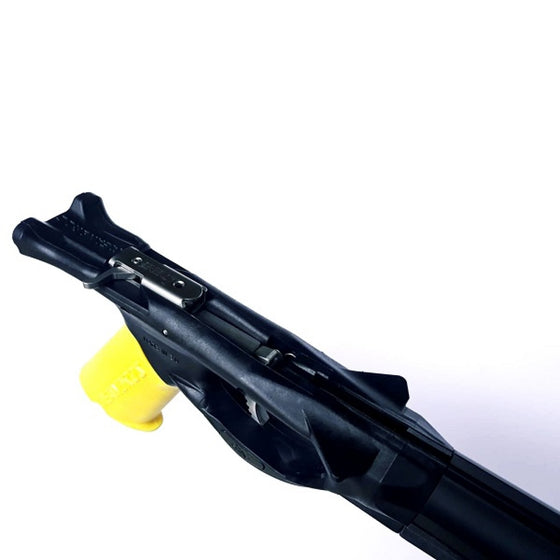

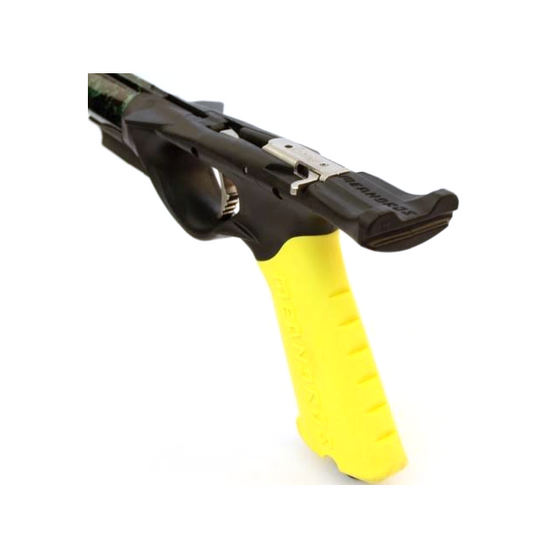

It consists of the most advanced ergonomic LEADER B28 handle with a particularly low profile and a non-slip, obtuse anatomic yellow grip. It has a loading butt and inverted full stainless steel heavy duty trigger mechanism with minimal weight and maximum sensitivity.

The reverse mechanism extends the loading length by 9.5 cm over conventional spearguns. It has an ambidextrous mechanical side line release, water balance to improve shaft speed, reduced friction guide and ambidextrous shooting line guide. Included bore hole allows easy adaptations to invert and roller style spearguns.

The included reel mount of the handle will fit any of the Meandros Reels, or other flat mount fixed reel. Handle comes with a sophisticated safety uniquely positioned in the base of the trigger guard.

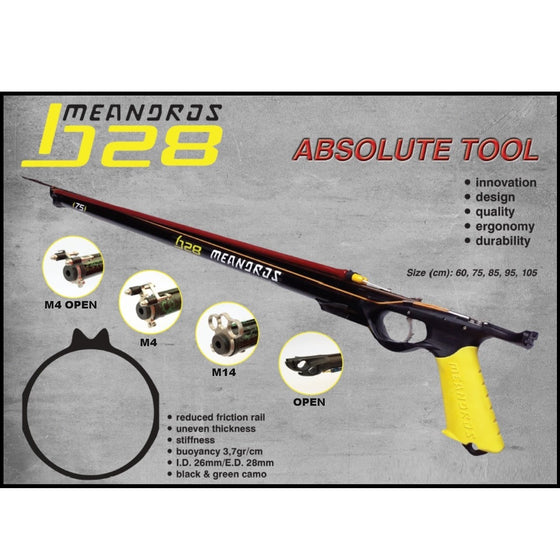

The tubular barrel is made of aluminum alloy with an integrated, V-shaped, rail guide with water cavity beneath the spear. This v-shape which delivers stiffness with a minimum weight of positive buoyancy of 3.7 gr / cm. The thickness of the barrel wall varies around the circumference for improved strength  and stiffness with less weight (1.00mm -1.45mm depending on the stress point). This is an engineering improvement on the rest of the circular tubes in the market.

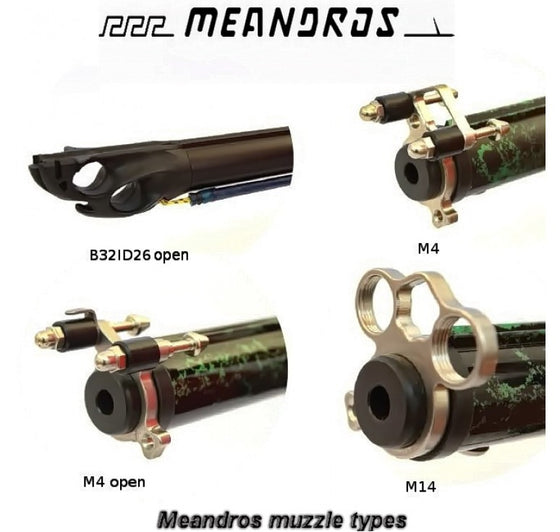

The Meandros M4 closed muzzle is an ultra low profile streamlined head providing a very close parallel fitting of rubbers along the barrel. Rubbers remain parallel during the pull or even at rest. Extremely strong as it is made from a single billet of stainless steel. Takes a single pair of rubbers, but there is possibility of fitting second pair of tied in rubbers in the small holes. The line wrap finger will easily accommodate a double wrap and can be located on the left or right side.

A major advantage of this head is the ability to use what often would be off-cuts and scraps of rubber as two halves tied to the head rather than what is required for a full loop.

Speargun comes naked allowing you the freedom of choice of rubber and spear type and diameters depending on your specific hunting requirements.



  • Tube material: Aeronautical aluminum alloy.
  • Tube dimensions: 26.0mm ID & 28.0mm OD.
  • Tube cut shape: Round with rail.
  • Wall thickness: 1.0mm - 1.45mm.
  • Buoyancy: + 3.73gr / cm.
  • Rail type/height:  V type embedded / 16mm from center of pipe.
  • Pipe protection: Fully anodised per piece.
  • Color: Green camo on black
  • Handle: Leader B28.
  • Handle profile: Extremely low.
  • Mechanism: Inverted full stainless, heavy duty, innovative design.
  • Line release: Ambidextrous horizontal.
  • Handle adjustment in the pipe: Male.
  • Sealing: O-ring 18 x 4.0.
  • Grip: Ambidextrous, non-slip, detachable.
  • Safety: Recessed in the trigger guard.
  • Loading pad: Anatomical with excellent line of  sight.
  • Muzzle: Muzzle M4
  • Muzzle type: Closed
  •

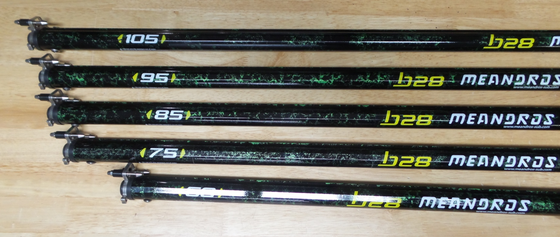

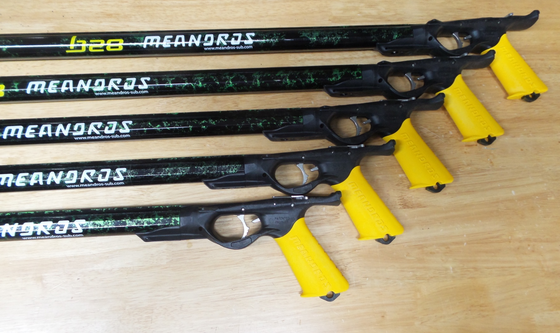

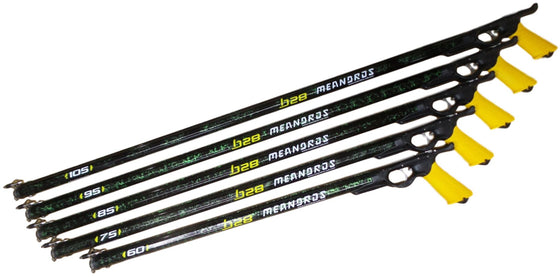

    It is produced in lengths of 60, 75, 85, 95, 105 cm.

    Meandros B28 LOAD LENGTHS, SPEAR LENGTHS AND OVERHANG:

    • 60cm speargun has a load length 67-73cm, 105cm spear = 24cm overhang
    • 75cm speargun has load length 82-88cm, 120cm spear = 24cm overhang
    • 85cm speargun has load length 92-98cm, 130cm spear = 24cm overhang
    • 95cm speargun has load length 102-108cm, 140cm spear = 24cm overhang
    • 105cm speargun has load length 112-118cm, 150cm spear = 24cm overhang

    Should you wish to have slightly less or more overhang, you can adjust the spear length accordingly.

    NOTE: Load lengths are based on Devoto Spear Shafts. Other Shafts will have slight variation in load length, dpending on the loading point positions.

    Meandros B28 Camo Green Speargun - NAKED M4 Closed

    $225.00
    Spearguns by Meandros
